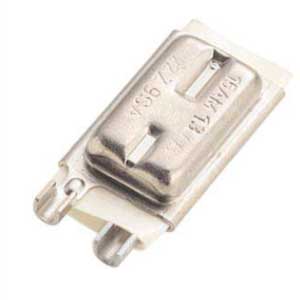

The heart of the 15AM thermal protector is the KLIXON ® snap-on bimetal disc. The current passes through the bimetal element. When the current increases or the ambient temperature rises to the set temperature value, the bimetal element moves quickly, opens the contact, and cuts off the circuit. When the device cools down to a safe operating temperature, the KLIXON® bimetal reed quickly resets, the contacts close automatically and power is restored.

• The 15AM thermal protector is a miniature, quick-acting, thermal-actuating device that uses a special KLIXON ® bimetal disc. It is suitable for direct or indirect overheat protection of electric heating appliances such as motors, transformers, lamps, electrical appliances, instruments and equipment. In the field of thermal protection technology, it is a widely used protection element.
• Miniaturized design;
• Every trip temperature is strictly corrected and tested;
• KLIXON ® bimetal discs are 100% fast-moving;
• Very high sensitivity to current and temperature;
• Various specifications and lengths of wire can be riveted according to customer requirements;
• Passed national safety certifications: UL, CSA, VDE, ENEC (EU), KEMA, CQC ... certificates;
• Each part strictly implements European ROHS environmental protection standards.

• Operating temperature range: 65 ℃ ~ 170 ℃ (one specification per 5 ℃)
• 15AM operating temperature tolerance: ± 5 ℃
• Switch status: Automatic reset
• Current overload protection: there are multiple groups of bimetal resistivity, which provide sensitivity design requirements

• Various types of Pumps & Motors, Like 2.0 & 2.5 & 3.0 HP MonoBlock Pumps.
• Water pump, air compressor, washing machine, washing machine, dishwasher, dryer ...
• Battery (battery pack, battery charger).
• Electronic ballasts for fluorescent lamps, HID ballasts, lighting ...
• Electric heating pads, car heating pads, medical thermal pads ...
• Laminator, power tool, vacuum cleaner, charger, transformer ...
• Household appliances, heating appliances ...
